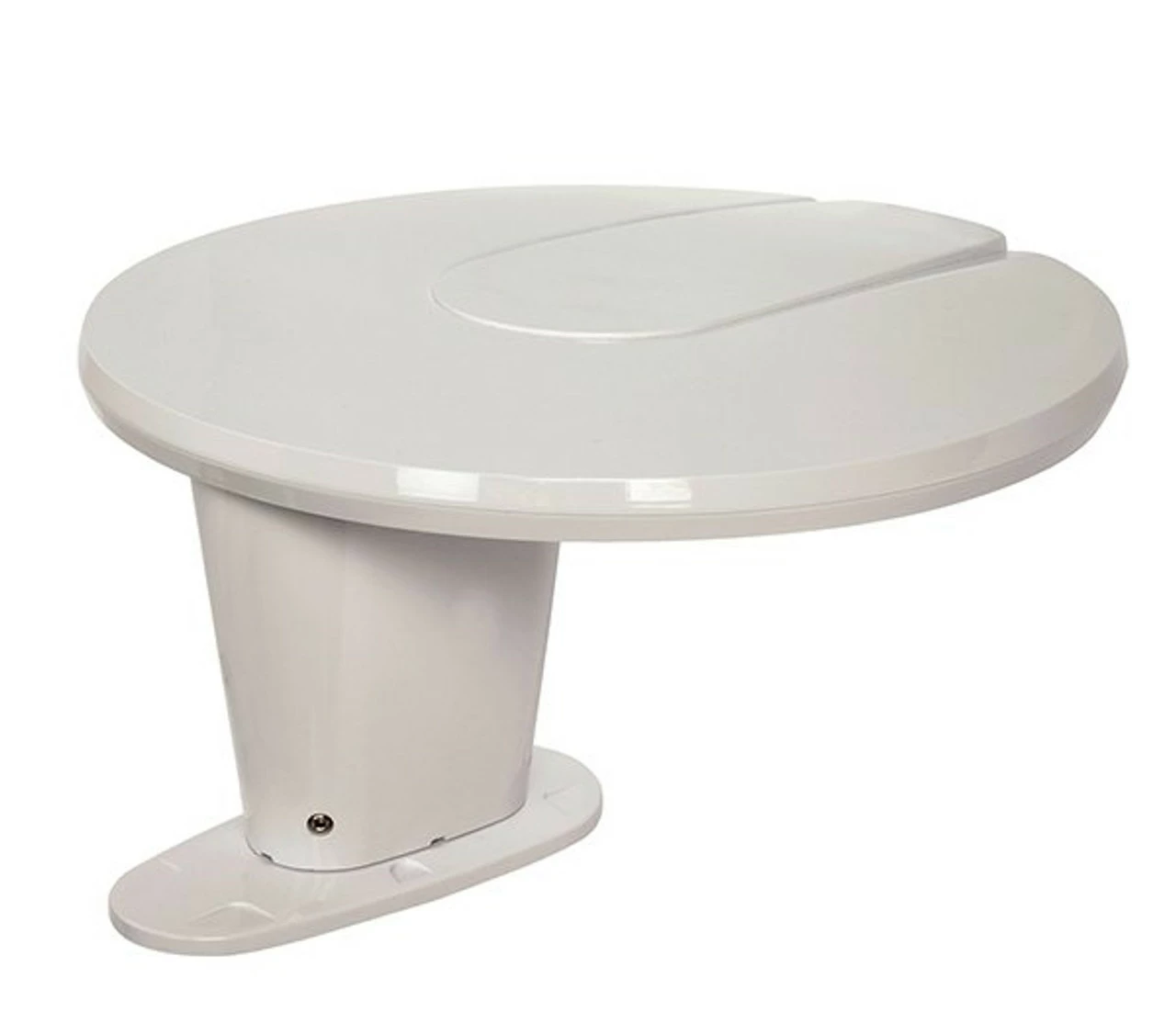

Vision Plus Status 270 Campervan Caravan TV Aerial

The Vision Plus Status 270 Caravan TV Aerial is similar to the fabled Vision Plus Status 355;

It looks and fits the same as the 355, but benefits from a smaller footprint, making the Status 270 ideal for ridged campervan, or smooth caravan and motorhome rooves.

The Vision plus Status 270 comes from a long line of absolutely the best omni-directional aerials for the campervan market.

The Vision Plus Status 270 Aerial: Transmission and Reception:

In a number of countries overseas as well as the UK, TV signals are transmitted horizontally and vertically, with vertical receptions requiring a vertical receiver.

The Vision Plus Status 270 Aerial accomplishes this using it’s new improved dipole array

Please note:

• TV reception can be greatly affected by the orientation of the antenna, and as such it’s crucial that all antennas are mounted level!

Features

• Ideal for campervan conversions
• Low aerodynamic profile
• Lightweight compact design

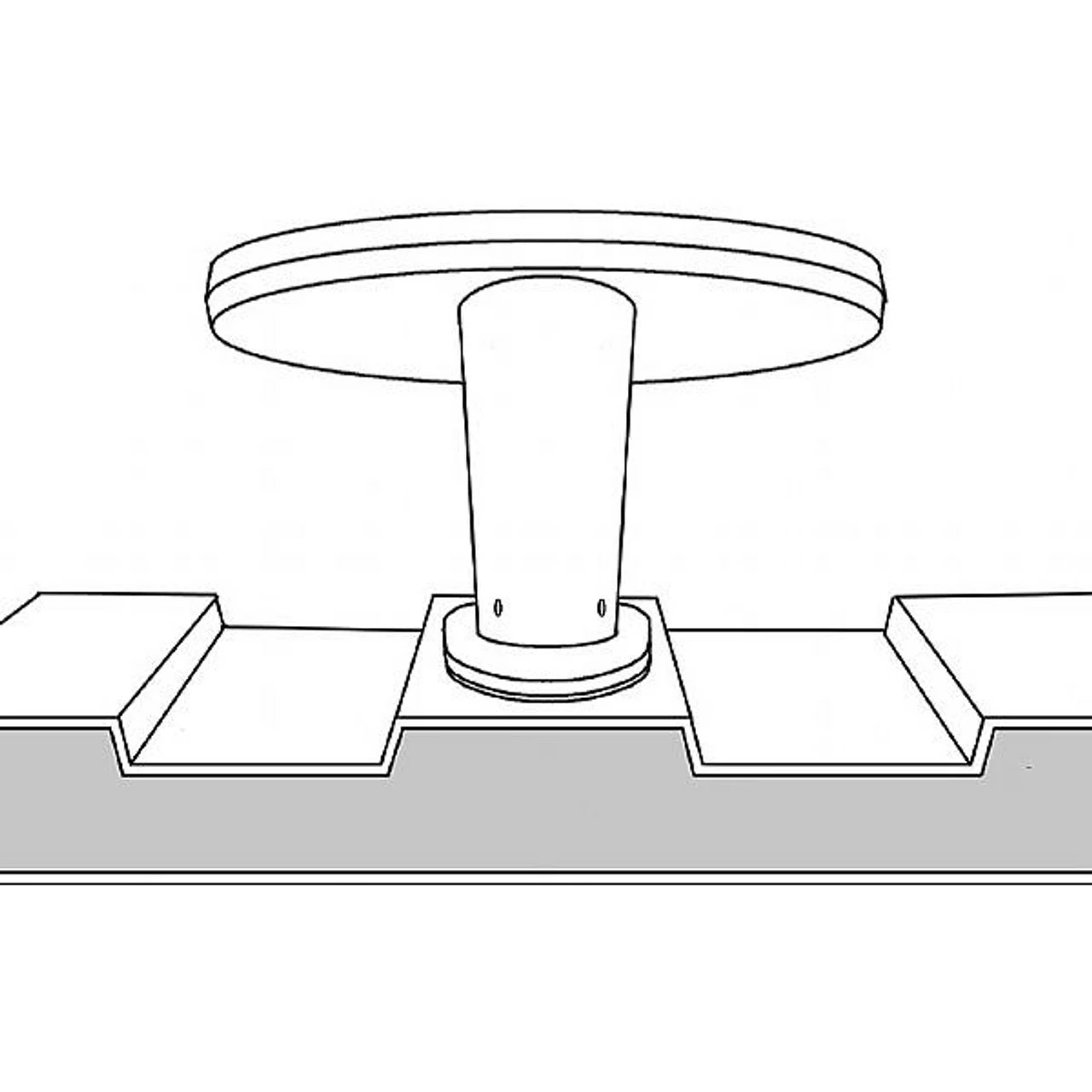

• Narrow streamlined mounting foot – ideal for ridged rooves
• Receives horizontal and vertical signals through 360 degrees

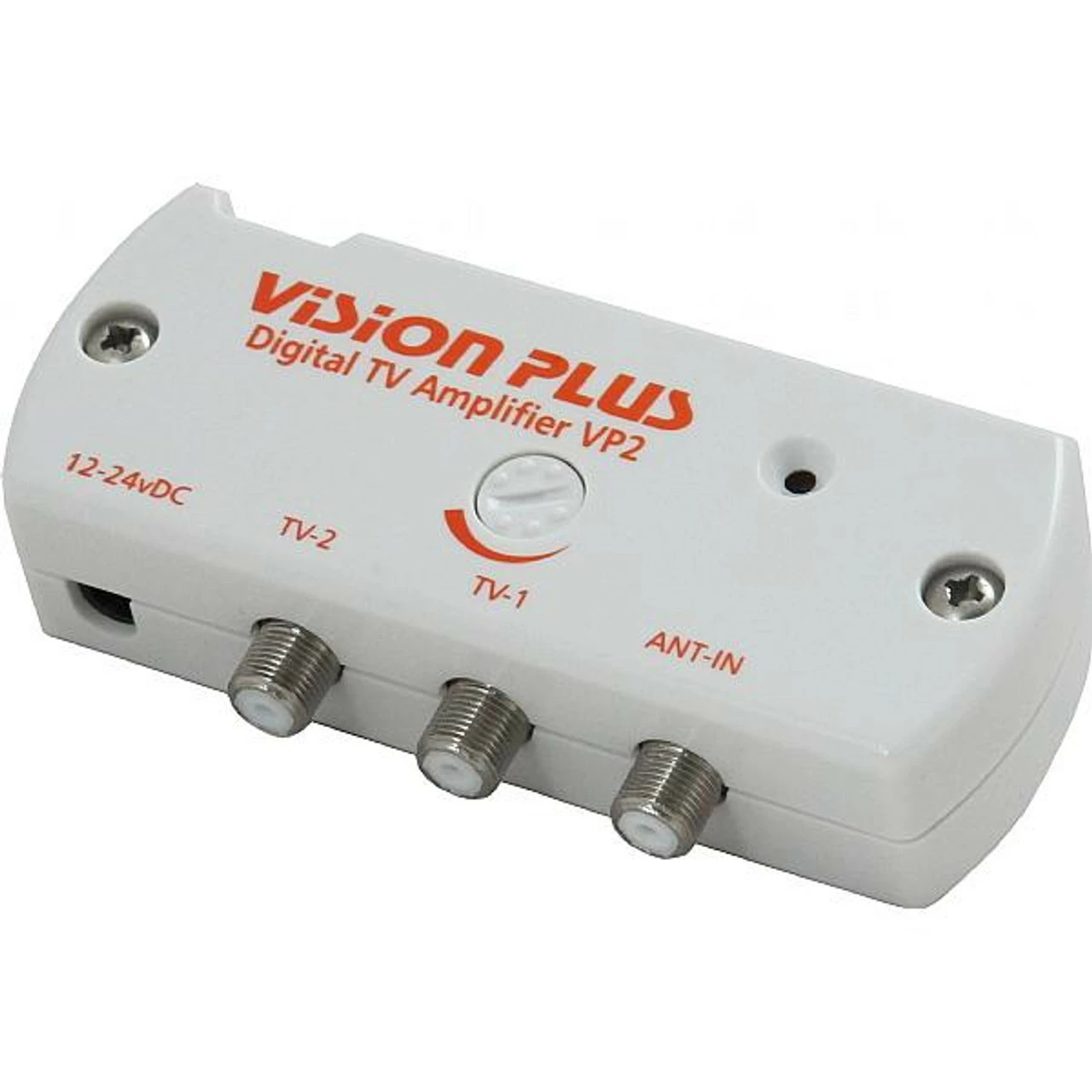

• VP2 amplifier with variable gain adjustment
• Easy to install with step by step instructions

Specifications

• Diameter – Antenna Dome 270 x 285 mm
• Diameter – Mounting Foot 150 x 70 mm
• Height – Overall 136 mm
• Height – Foot 31 mm
• Amplifier 115 x 46 x 29 mm
