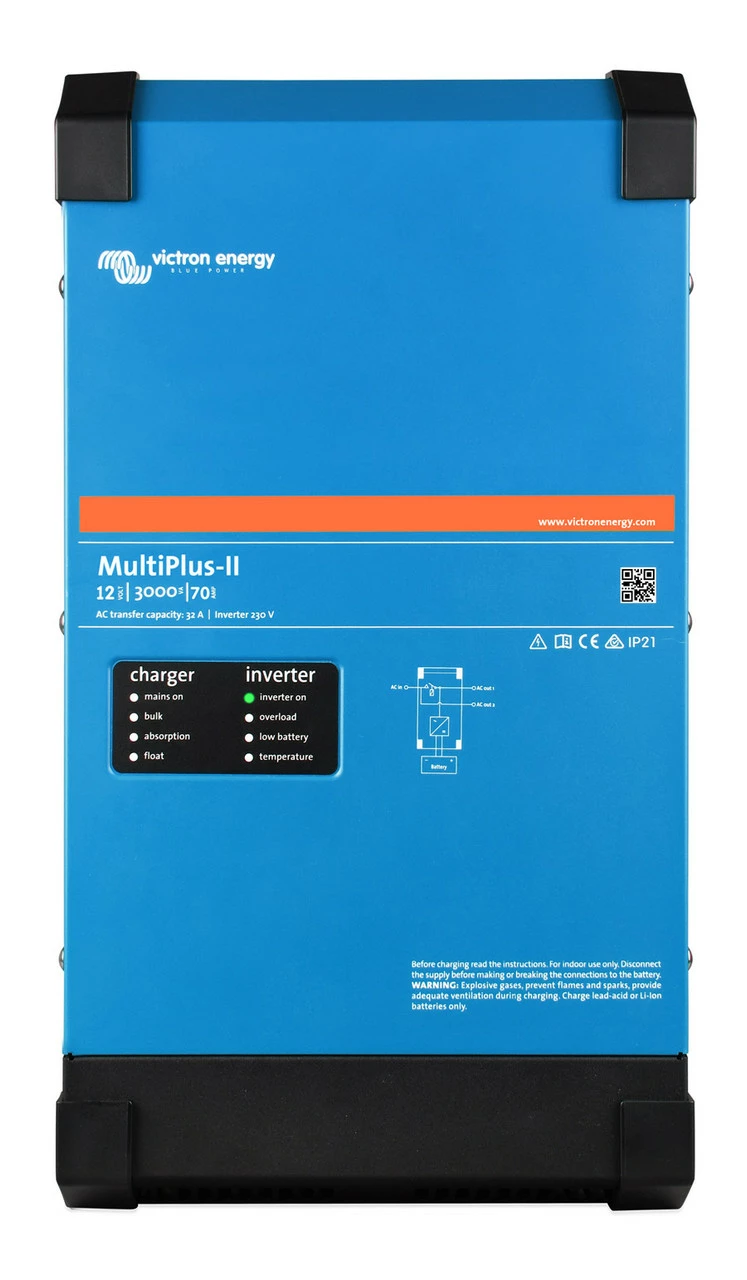

Victron Energy MultiPlus II 12/3000/120-50 2x120V Inverter/Charger

Versatile power control for solar and off-grid systems

The MultiPlus is the swiss army knife of electrical management, acting as an inverter, charger, UPS, output booster and ESS (energy storage system) manager. When coupled with a Cerbo GX device, it can be remotely monitored or controlled via touchscreen, web or mobile, too.

PowerAssist

The MultiPlus II can prevent the overload of a limited AC source by boosting the output when required, ensuring your appliances and devices don’t malfunction unexpectedly. It can accomplish this by first reducing battery charging levels to prevent an overload, and if further assistance is required it can also boost the output of the AC generator or shore side supply by taking power from you battery system.

Ideal for Energy Storage Systems (ESS)

The MultiPlus II is perfect for use in combination with MPPT solar chargers and other Victron energy devices. In the event of a grid failure, or when shore or generator power is disconnected, the MultiPlus can act as a UPS, providing uninterrupted AC power. It does this by activating its inverter to take over supply to your connected loads. It’s able to do this in less than 20 milliseconds, which is so fast that even complex electronic devices such as computers will operate without disruption.

Remote monitoring and control

The MultiPlus II is compatible with the Cerbo GX and Touch GX monitoring system, providing remote monitoring and control over the web, mobile app or touchscreen.

Victron Energy MultiPlus II 12/3000 features:

• Powerful and efficient charger and inverter for electrical systems
• Can be monitored and configured via Victron Energy remote monitoring systems such as the Cerbo
• Capable of boosting output to prevent overload
• Ultra rapid switching enables UPS-style uninterrupted operation

Victron MultiPlus 12/3000 Datasheet:

Technical Specifications

• PowerControl & PowerAssist Yes (on L1 input)
• Transfer switch 50A
• Maximum AC input current 50A (each leg)

CHARGER

• DC Input voltage range 95-17V
• Output when in inverter mode Output Voltage 120VAC +-2%, Frequency 60Hz +-0.1%
• Cont. output power at 25°C 3000 VA
• Cont. output power at 25°C 2400 W
• Cont. output power at 40°C 2200 W
• Cont. output power at 65°C 1700 W
• Maximum apparent feed-in power 2500 VA
• Peak power 5500 W
• Maximum efficiency 93%
• Zero load power 19W
• Zero load power in AES mode 15W
• Zero load power in Search mode 4W
• Split phase 180-280 VAC 45-65 Hz
• AC Input Single phase 180-280 VAC 45-65 Hz, Split Phase 90-140 VAC 45-65Hz
• Charge voltage ‘absorption’ 14.4V
• Charge voltage ‘float’ 13,8V
• Storage mode 13,2V
• Maximum battery charge current 120A
• Battery temperature sensor Yes

GENERAL

• Auxiliary output 50 A (each leg)
• External AC current sensor (optional) 100A
• Programmable relay Yes
• Protection a-g
• VEBus communication port For parallel and three phase operation, remote monitoring and system integration
• General purpose com. Port Yes, 2x
• Remote on-off Yes
• Operating temperature range -40 to +65°C (0-140°F) Fan assisted cooling
• Humidity (non-condensing) max 95%

ENCLOSURE

• Material & Colour Steel, blue RAL 5012
• Protection category IP22
• Battery-connection 2×2 M8 bolts
• 120/240 V AC-connection Screw terminals 21 mm2 (4 AWG)
• Weight 22 kg (48 Ib)
• Dimensions (hxwxd) 578 x 275 x 148 mm (23 x 11 x 6 inch)

STANDARDS

Safety EN-IEC 60335-1, EN-IEC 60335-2-29

EN 55014-1, EN 55014-2

Emission, Immunity EN-IEC 61000-3-2, EN-IEC 61000-3-3

IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
