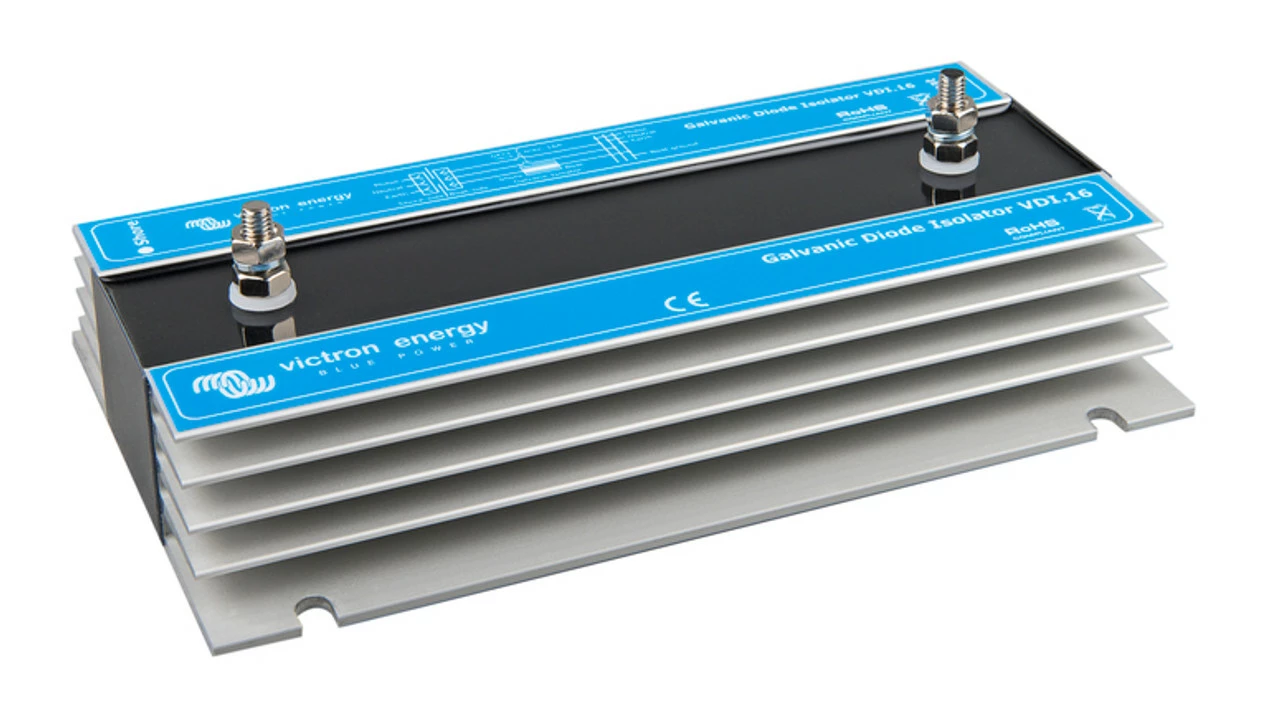

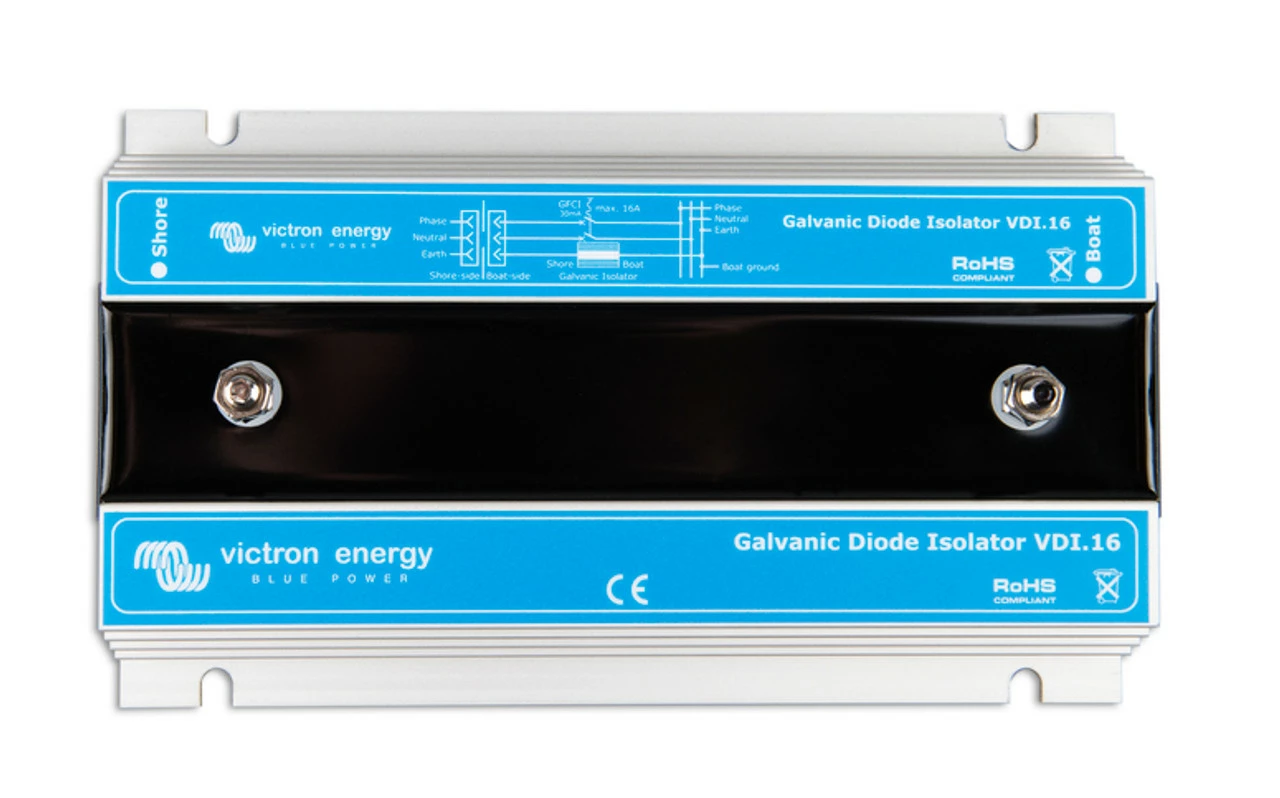

Victron Energy Galvanic Isolator VDI-16 A For Marine And Boat
Original price was: $81.37.$56.96Current price is: $56.96.
- The Quality Choice for Smart Shoppers
- Expertly Sourced, Quality Guaranteed
- Service with a smile, always online.
- The best quality products, always.
Victron Energy Blue Power Galvanic Isolator VDI-16 A
Overview
Consisting of two separate diodes which connect together in an anti-parallel connection the Galvanic Isolator allows a current in two different directions without breaking a threshold voltage.
By installing the Galvanic Isolator directly behind your boats 230v connection you will be ensuring that forward voltage from the isloator is higher than any potential difference between metals. This means that any conduction will not be allowed due to the voltage and any electrolytic current is prevented.
Datasheet:
Â
Â
Â
Â
Technical Specifications:
- Maximum Current:
- 16 Amp
- Peak Current (20 ms):
- 1600 A
- Connection:
- 2 Studs M6
- Material:
- Anodized Aluminium
- Protection Capacity:
- IP67
- Weight (KG):
- 1
- Dimensions (HxWxD):
- 60 x 120 x 200 mm
