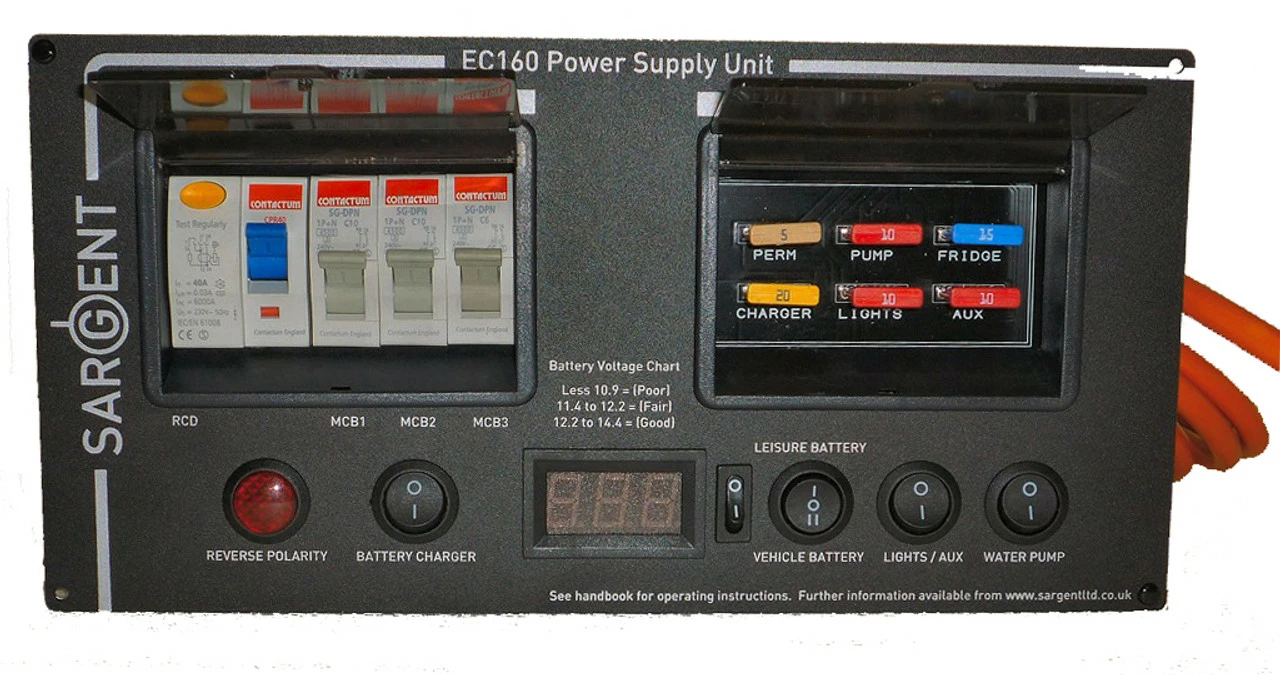

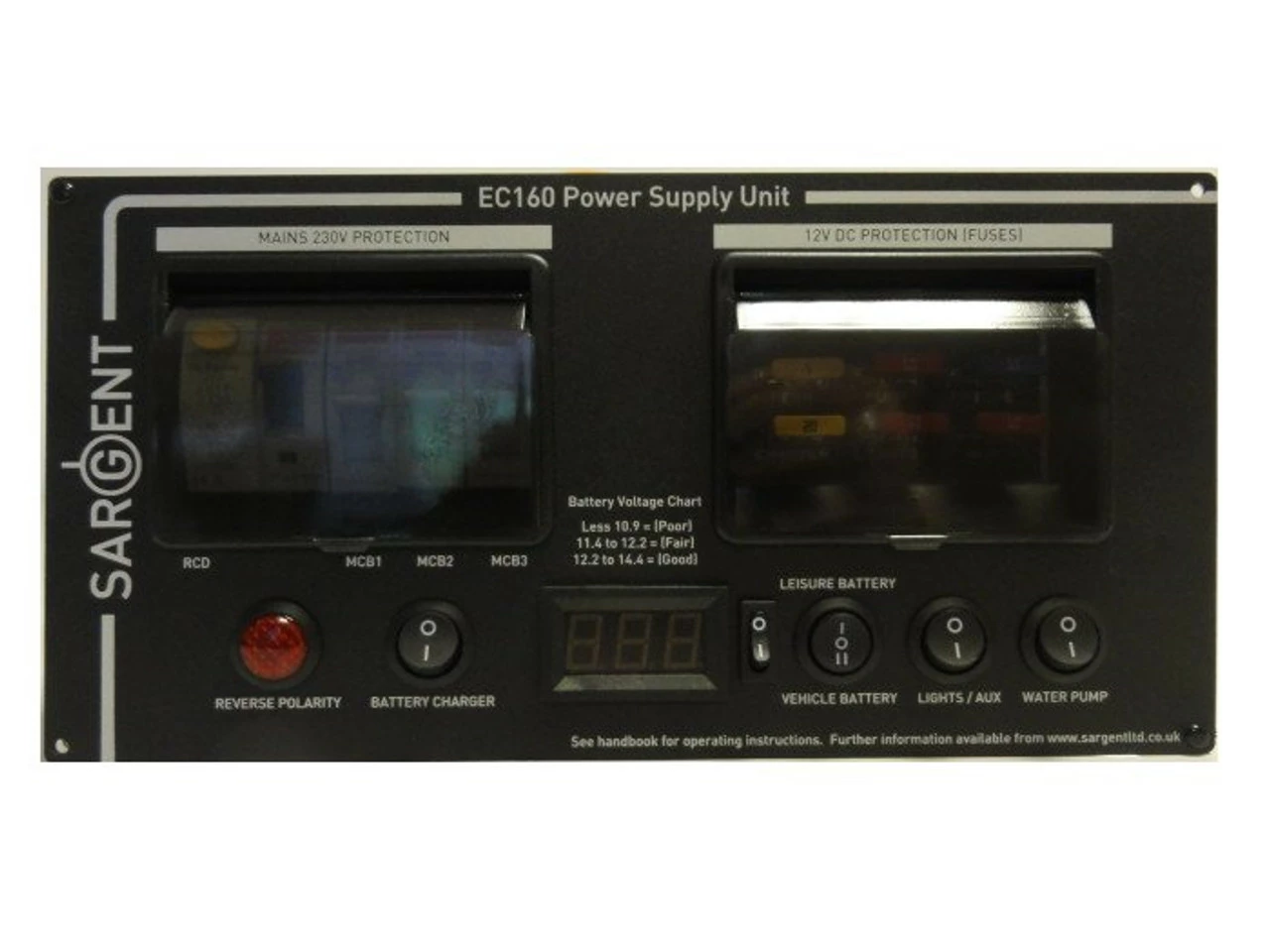

Sargent PMS3 EC160 Power Supply Unit

A combined 240vAC and 12v DC distribution unit, the Sargent PMS3 EC160 Power Supply Unit is especially designed for caravan, motorhome, camper van and horsebox installations and is particularly ideal for T2, T25, T4 and T5 campers. The Sargent PMS3 EC160 Power Supply Unit is easy to install and straightforward.

Sargent PMS3 EC160 Power Supply Unit features

230v AC:

• 16A input via wired 2m lead
• RCD protected with reverse polarity indication
• Built in 150w 13.8v fixed voltage battery charger with on/off switch
• 3 x 10A MCB outputs via quick fit connector blocks

12v DC

• 2 x 15A battery inputs via screw terminal block
• 5 x outputs via screw terminal black
• Pump output via pump switch & 5A fuse
• Lights output via lights / Aux switch & Aux 10A fuse
• Permanent output via 5A fuse
• Fridge output VA 15A fuse
• Built in split charge relay (configurable)
• Built in EMC isolation relay (configurable)
• Digital voltmeter with on/off switch





Technical Specifications:

Dimensions:

Front Panel: (300x 150mm); Panel Cut Out (285 x 132mm); Depth (200mm);

Warranty:

12 Months Manufacturers warranty
