PV Logic 150w Motor Home Solar Panel Kit with MPPT Controller

The perfect solar energy solution for people with high power necessities, the PV Logic 150w Solar Panel Kit provides maximum power from the smallest possible module size making it ideal for boats, motor homes and caravans with space or weight restrictions.

The PV Logic 150w Solar Panel Kit is a tough, durable and efficient energy solution suitable for powering an assortment of consumption devices with the added reliability of being suitable for outdoor use as well as water resistant.

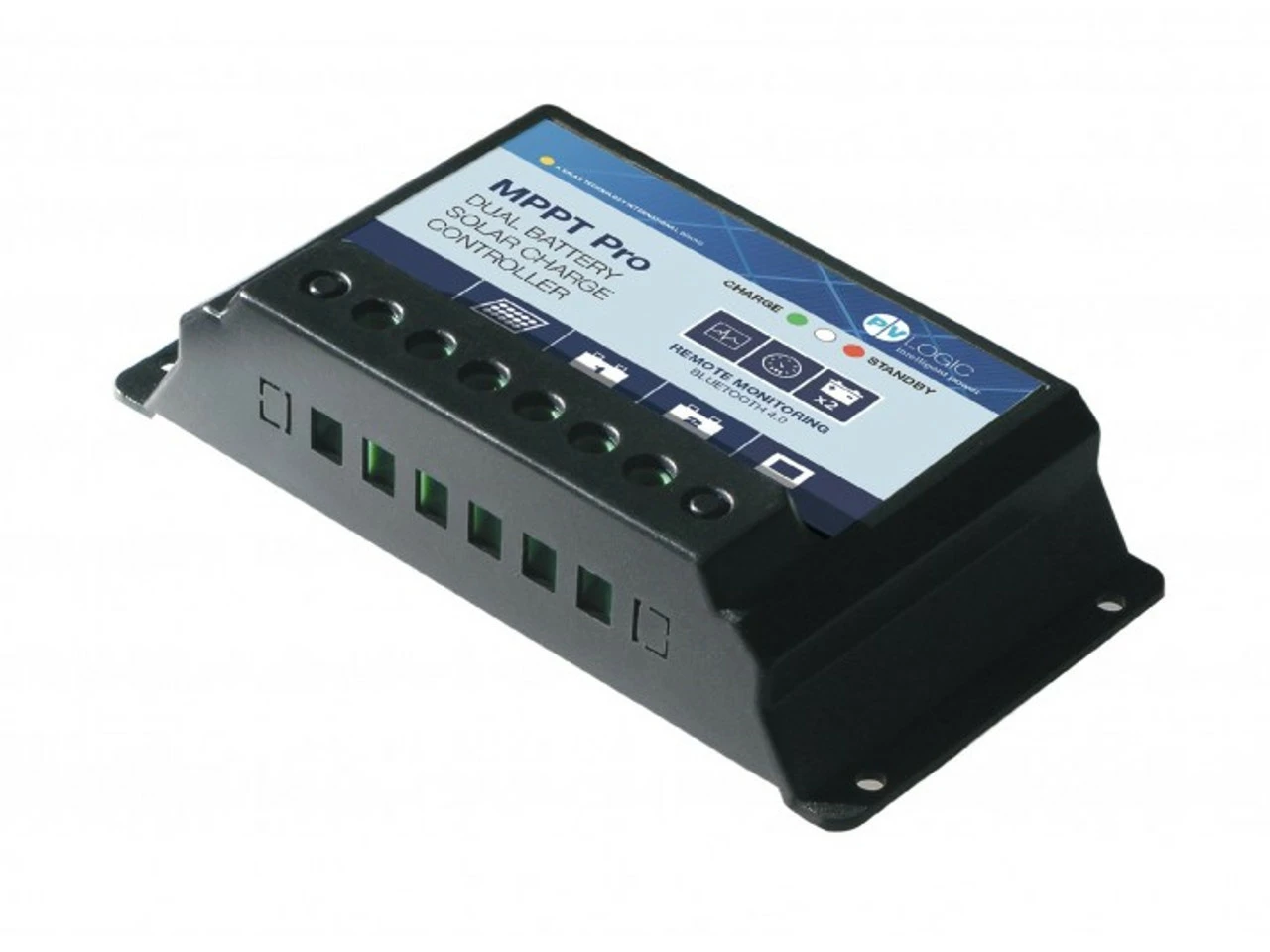

15 amp MPPT Charge Controller included

The PV Logic 150w Solar Panel Kit also comes supplied with a 15amp MPPT (Maximum power point tracking) Charge Controller which increases panel efficiency, protects the battery from being overcharged and also prevents reverse current drain.

What is an MPPT Controller?

An MPPT, or maximum power point tracker, is an electronic DC to DC converter that optimises the match between the solar array (PV panels), and the battery bank in your campervan, caravan or motorhome.

To put it simply, they convert a higher voltage DC output from solar panels down to the lower voltage needed to charge batteries.

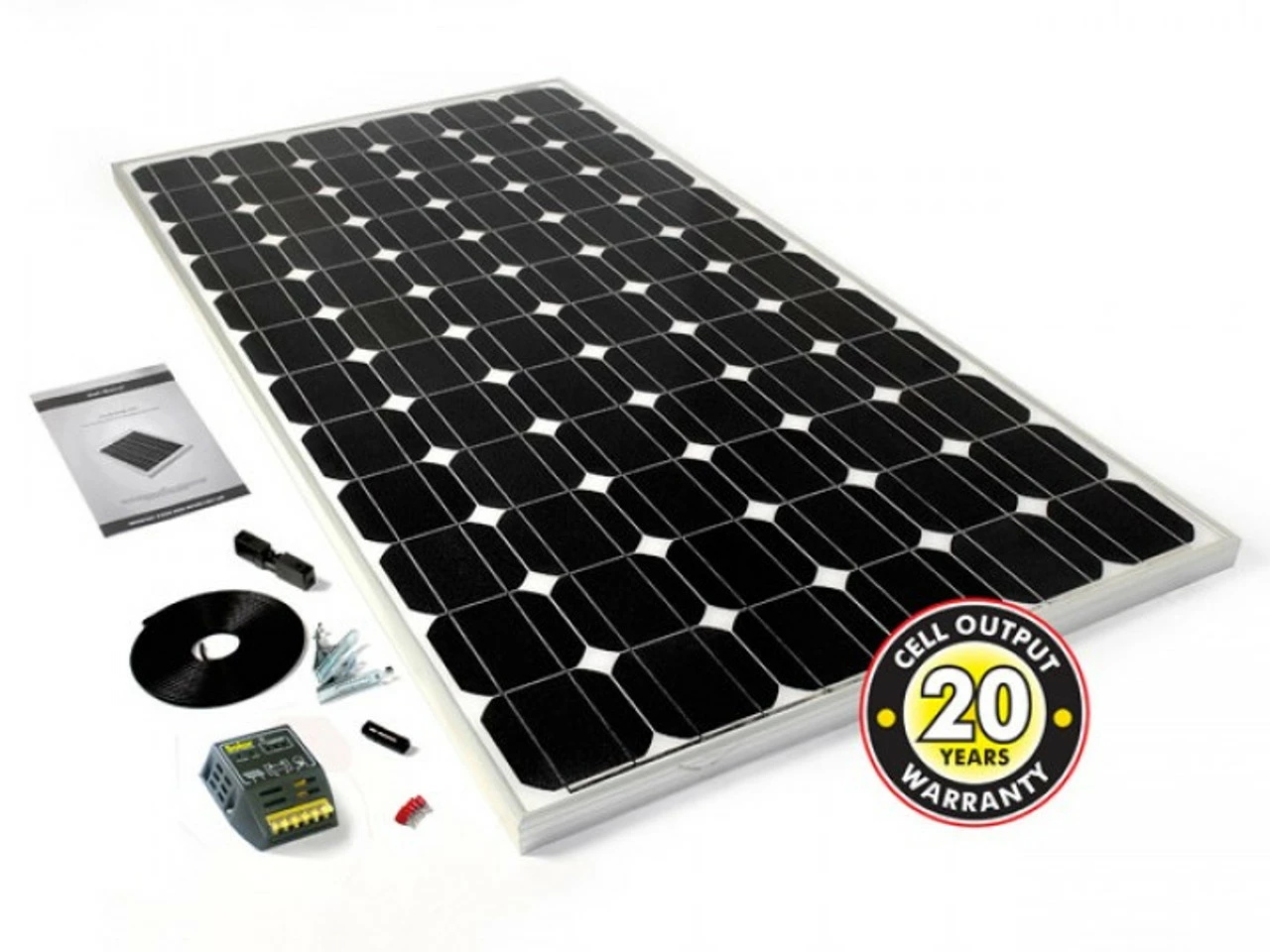

PV Logic 150w Solar Panel Kit contents

• 1 x STP150 – 150wp solar panel
• 1 x 4m Cable
• 1 x Fuse
• 1 x In Line Connector
• 2 x Crocodile Clips
• 6 x Ring Terminals
• 1 x Instruction Sheet
• 1 x Sealant
• 1 x MPPT Charge controller
• 4 x Angle mounting Brackets

 Panel Specification:

Power	Size	Weight (Kg)	Watts per day (w)	Amp hours per day (Ah)
150w	1475 x 670 x 35mm	11.1	900w	52.32



Vmp (VDC)	IMP (A)	Voc(V)	Isc (A)	Charge Controller
17.5	8.72	22	9.72	15 amp MPPT

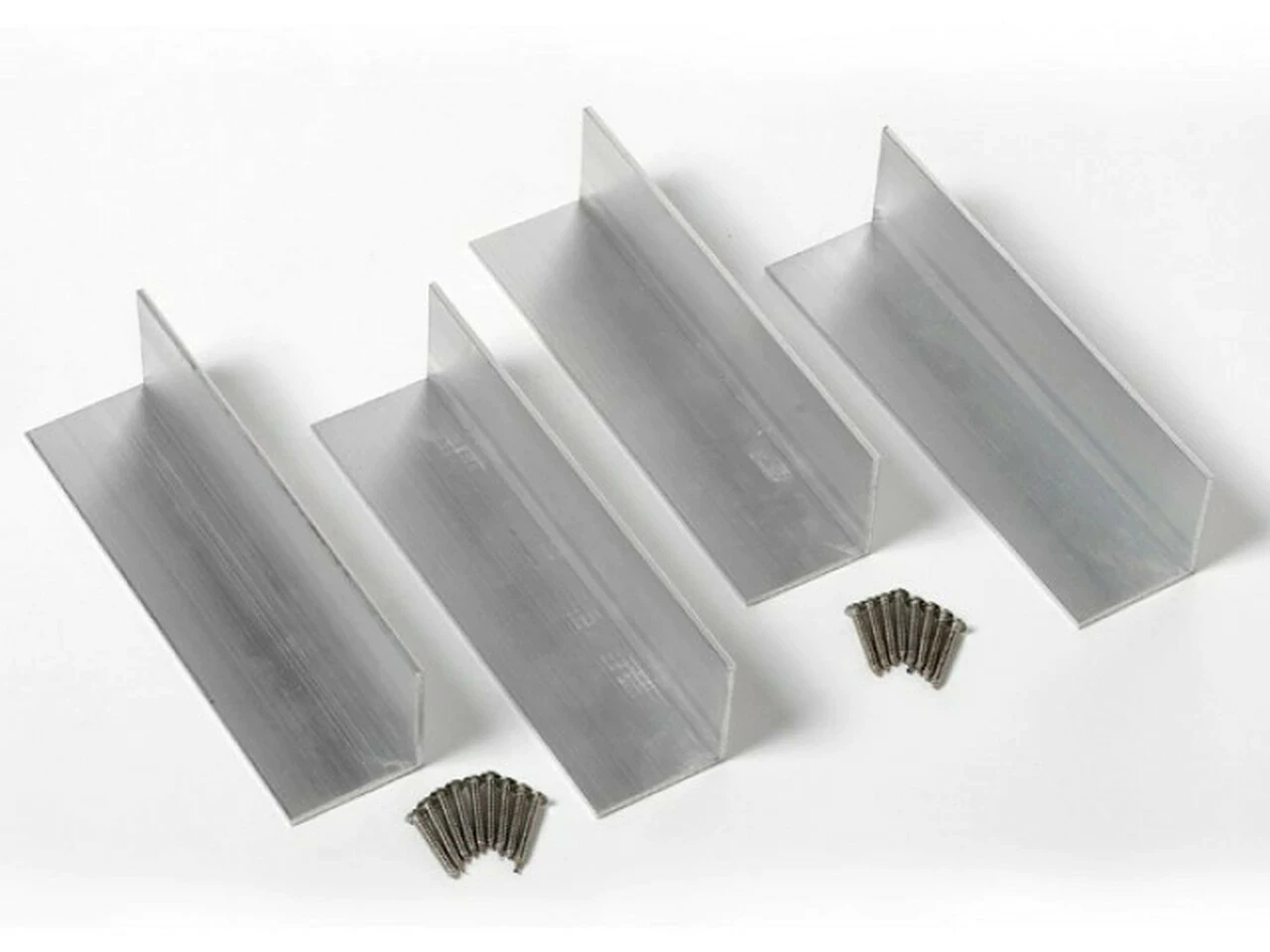

Mounting brackets FKA08 included. Other styles of fitting kit are available at extra cost.



What output can I expect?

 During summer in the UK we expect 4-6 hours of peak power (where the panel is producing close to its maximum output). During the winter in the UK its about 2-3 hours.

E.g. A summers day can produce 150w per hour for 4-6 hours generating around 600w-900w.

The PV logic 150 watt solar panel kit will, at its nominal out, be producing approximately 9.72 amps per hour (ah) to feed into your Leisure Batteries.



PV Logic 150w MPPT Solar Panel Kit features

• High efficiency crystalline cell for “all weather” charging
• Perfect for TV operation and for permanent fitting
• Water resistant, robust construction for outdoor use.

---

Technical Specifications:

Power:

150watts

Estimated UK Summers Day Output:

600-900w / 38.8-52.3ah

Peak Output:

9.72A @ 17.5V

Approx. watt-hours/day**:

900

Approx. amp-hours/day**:

52.32

Dimensions:

1475 x 670 x 35mm

Weight:

11kg
